LED按鈕開關為按鈕開關+LED的復合式按鈕開關，開關功能件內部帶有LED指示燈，既能準確指示開關通斷狀態，同時又非常方便用戶在黑暗中尋找開關位置。它的開和關的操作都在同一位置，手按松開后翹板自動恢復平整狀態，手感更好，而且壽命更長。

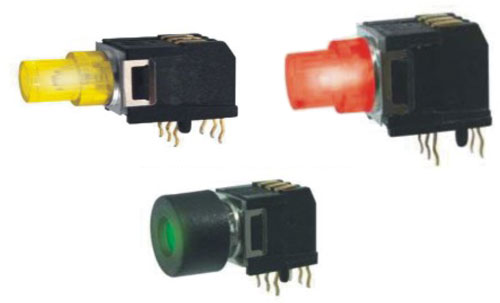

超薄帶燈輕觸開關R2995A

• Pole-Position：1P2T,Right Angle Push on-on momentary

Type,with or w/o LED are Available

• Rating：Power Min./Max.:0.02VA/1.0VA

Current Min./Max.:0.1mA~100mA

Voltage Min./Max.:DC 20mV~DC 32V

• Contact Resistance：250mΩmax，1.5VDC;100mA,

by Method of Voltage DROP

• Insulation Resistance：100MΩ min.500VDC

• Dielectric Strength：Breakdown is not Allowable;

250 VAC for 1 Minute

• Operating Force：400±125gf

• Operating Life：50,000 cycles

• Operating Temperature Range：-20℃ ~70℃

• Total Travel：0.20mm MAX

Part Number	Rating	Contact Resistance	Insulation Resistance	Dielectric Strength	Operating Force	Operating Life	Operating Temperature Range	Total Travel	PDF下載
R2995A-NWY	Power Min./Max.:0.02VA/1.0VA Current Min./Max.:0.1mA~100mA Voltage Min./Max.:DC 20mV~DC 32V	250mΩmax，1.5VDC;100mA,by Method of Voltage DROP	100MΩ min.500VDC	Breakdown is not Allowable;250 VAC for 1 Minute	400±125gf	50,000 cycles	-20℃ ~70℃	0.20mm MAX	暫無
R2995A-NWR	Power Min./Max.:0.02VA/1.0VA Current Min./Max.:0.1mA~100mA Voltage Min./Max.:DC 20mV~DC 32V	250mΩmax，1.5VDC;100mA,by Method of Voltage DROP	100MΩ min.500VDC	Breakdown is not Allowable;250 VAC for 1 Minute	400±125gf	50,000 cycles	-20℃ ~70℃	0.20mm MAX	暫無
R2995A-NWG-CAP-K	Power Min./Max.:0.02VA/1.0VA Current Min./Max.:0.1mA~100mA Voltage Min./Max.:DC 20mV~DC 32V	250mΩmax，1.5VDC;100mA,by Method of Voltage DROP	100MΩ min.500VDC	Breakdown is not Allowable;250 VAC for 1 Minute	400±125gf	50,000 cycles	-20℃ ~70℃	0.20mm MAX	暫無
